Product Categories

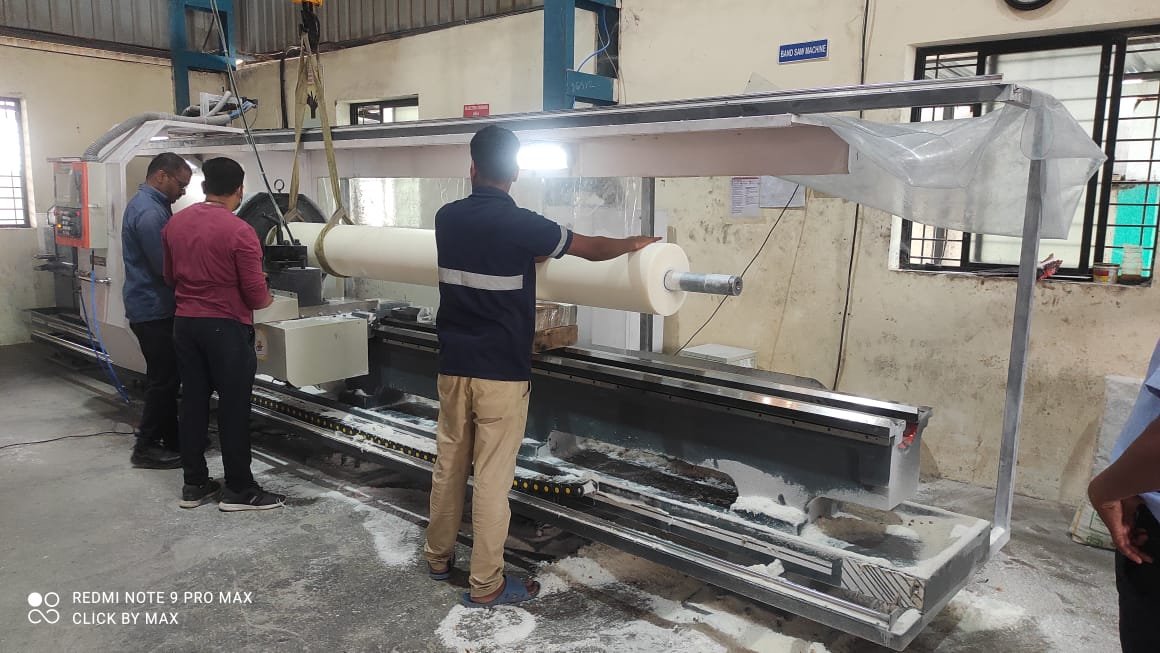

Long Length CNC Lathe Machine

Request Callback
Long Length CNC Lathe Machine
Get Best Quote
Machine Specifications
Yes! I am Interested

SPM Machine

Request Callback
SPM Machine
Get Best Quote
Machine Specifications
Yes! I am Interested

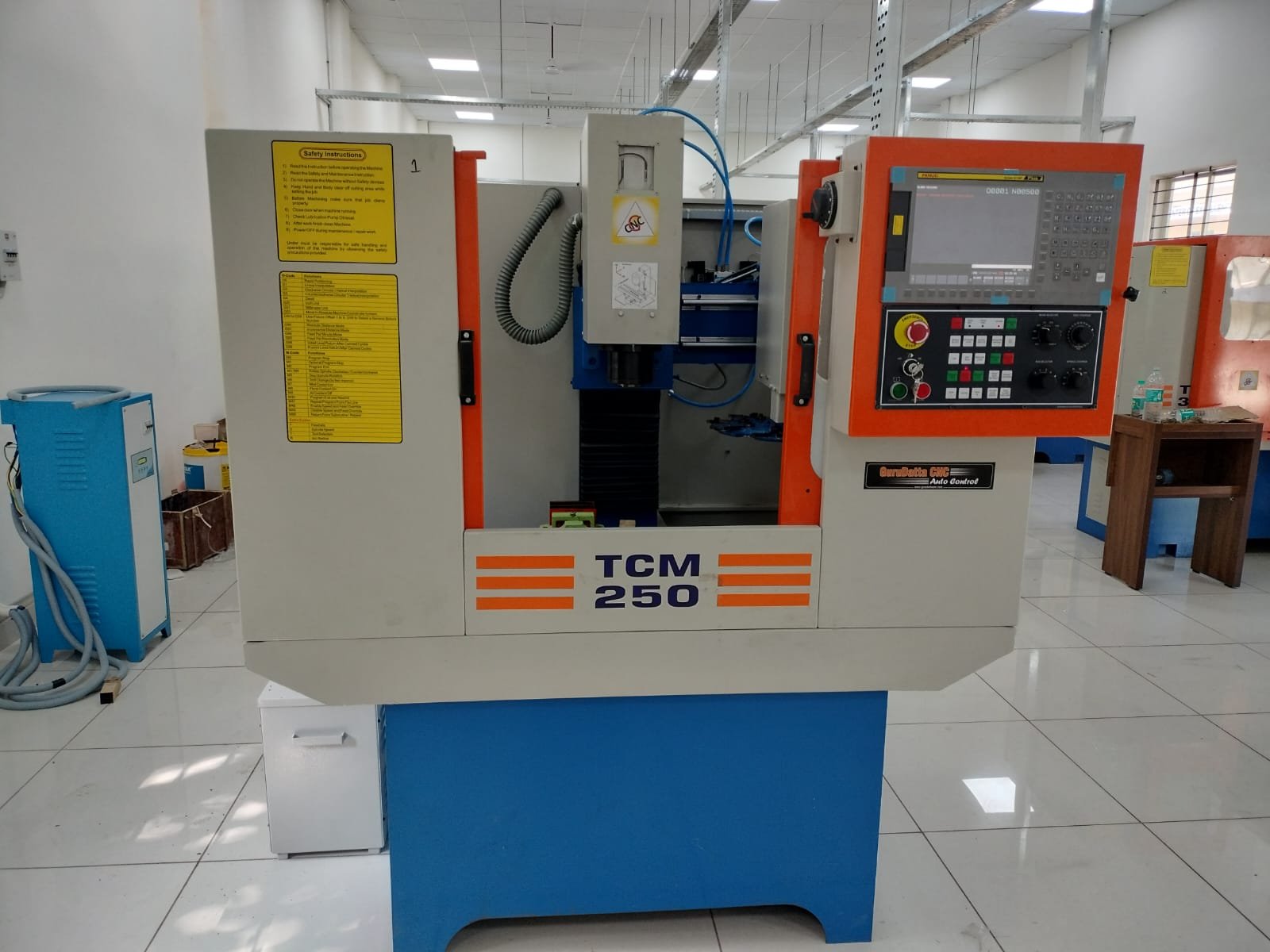

Educational CNC Milling Machine

Request Callback
Educational CNC Milling Machine
Get Best Quote
Specification Table Size : 200 X 600 mm
Specification Axis Travel X : 275 mm
Specification Axis Travel Y : 150 mm
Specification Axis Travel Z : 250 mm
Machine Specifications
CNC Controller Delta / Fanuc / Siemens / PC Base Mach3
Axis Motor & Drive AC Servo (1.3 Nm)
Spindle Motor 1 HP with VFD (3PH)
Spindle Motor Speed 100 to 3000 RPM
Transformer Included
Lubrication System Automatic (Motorized)
Table Size 200 X 600 mm
Axis Travel X Axis 275 mm
Axis Travel Y Axis 150 mm
Axis Travel Z Axis 250 mm
Axis Control 3 Axis
Axis Plane XY, XZ & YZ
T Slot 12 mm
Repeatability ±0.005 mm
Rapid Feed Rate (X, Y, Z) 1000 mm/Min
Ball Screw HIWIN (X Ø20x5, Y Ø20x5, Z Ø25x5)
Max Rapid Feed 4000 mm/Min
Minimum Increment 0.001 mm
Collet Holder R8
Positional Accuracy ±0.005 mm
Table Load Capacity 100 kg
Machine Dimensions 1200 X 1200 X 1600 mm
Machine Weight Approx. 700 kg
ATC & Tooling Extra
Yes! I am Interested

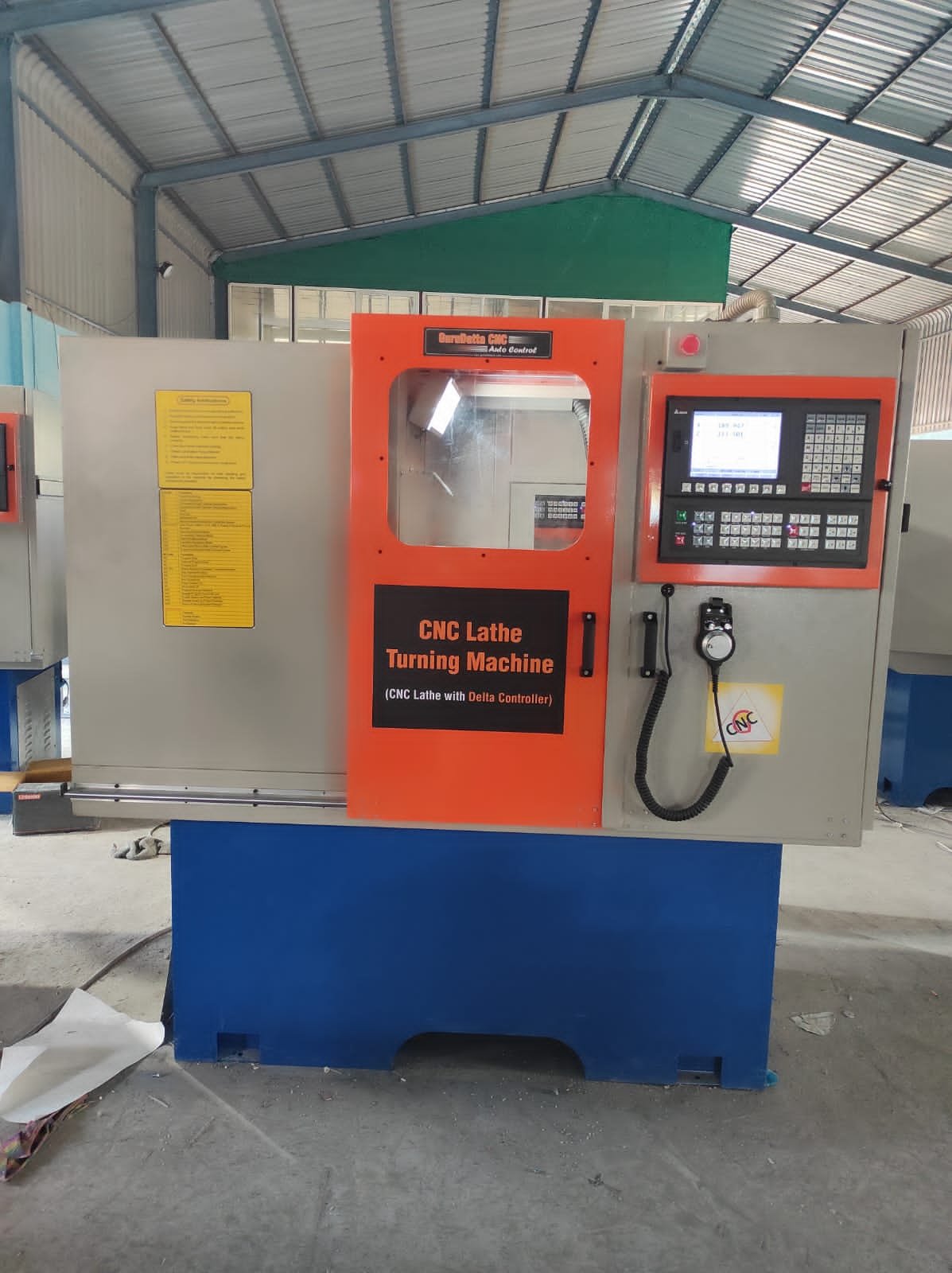

Educational CNC Lathe Machine

Request Callback
Educational CNC Lathe Machine
Get Best Quote
Specification Swing Over Bed : 250 mm
Specification Centre Height : 170 mm
Specification Max Turning Length : 150 mm
Specification Controller : Delta / Fanuc / Siemens / Mach3
Machine Specifications
CNC Controller Delta / Fanuc / Siemens / PC Base Mach3
CNC Software Window Based Software
Axis Motor & Drive AC Servo (1.3 Nm & 1.3 Nm)
Spindle Motor 2 HP with VFD
Spindle Motor Speed 100 to 3000 RPM
Lubrication System Automatic (Motorized)
Swing Over Bed 250 mm
Swing Over Carriage 100 mm
Centre Height 170 mm
Transformer 1 KVA
Max Machining Diameter 60 mm
Max Turning Length 150 mm
Max Longitudinal Travel 300 mm
Spindle Inside Taper MT-3
Spindle Type Regular
Spindle Bore Dia 38 mm
Standard Cutting Tool Size 20 X 20
Input System Metric / Inch
Chuck Size Dia 110 mm
Rapid Feed Rate Axis 1000 mm/Min
Max Rapid Feed 4000 mm/Min
Accuracy 0.005µ
Ball Screw HIWIN
Horizontal Tool Changer 4 Station
Yes! I am Interested

CNC Milling Machine

Request Callback
CNC Milling Machine
Get Best Quote
Specification Table Size : 200 X 600 mm
Specification Axis Travel X : 275 mm
Specification Axis Travel Y : 150 mm
Specification Axis Travel Z : 250 mm
Machine Specifications
CNC Controller Delta / Siemens / Fanuc / PC Base Mach3
Axis Motor & Drive AC Servo
Spindle Motor 2 HP with VFD
Spindle Motor Speed 100 to 3000 RPM
Transformer 2 KVA
Lubrication System Automatic (Motorized)
Table Size 200 X 600 mm
Axis Travel X Axis 275 mm
Axis Travel Y Axis 150 mm
Axis Travel Z Axis 250 mm
Axis Control 3 Axis
T Slot 12 mm
Repeatability ±0.005 mm
Rapid Feed Rate (X,Y,Z) 1000 mm/Min
Ball Screw HIWIN
Max Rapid Feed 4000 mm/Min
Minimum Increment 0.001 mm
Collet Holder R8
Positional Accuracy ±0.005 mm
Machine Weight Approx. 700 kg
Table Load Capacity 100 kg
Machine Dimensions 1200 X 1200 X 1600 mm
Yes! I am Interested

CNC Trainer Lathe

Request Callback
CNC Trainer Lathe
Get Best Quote
Specification Swing Over Bed : 250 mm
Specification Centre Height : 200 mm
Specification Max Turning Length : 150 mm
Specification Controller : Delta / Fanuc / Siemens / Mach3
Machine Specifications
CNC Controller Delta / Fanuc / Siemens / Mach3
Axis Motor & Drive AC Servo
Spindle Motor 2 HP with VFD / 1.7 KW
Spindle Motor Speed 100 to 3000 RPM
Lubrication System Automatic (Motorized)
Swing Over Bed 250 mm
Swing Over Carriage 100 mm
Centre Height 200 mm
Transformer 3 KVA
Max Machining Diameter 60 mm
Max Turning Length 150 mm
Max Longitudinal Travel 300 mm
Spindle Inside Taper MT-3
Spindle Type Regular
Spindle Bore Diameter 38 mm
Standard Cutting Tool Size 20 X 20
Input System Metric / Inch
Chuck Size Dia 110 mm
Rapid Feed Rate Axis 1000 mm/Min
Max Rapid Feed 4000 mm/Min
Accuracy 0.005µ
Ball Screw HIWIN
Horizontal Tool Changer 4 Station
Yes! I am Interested

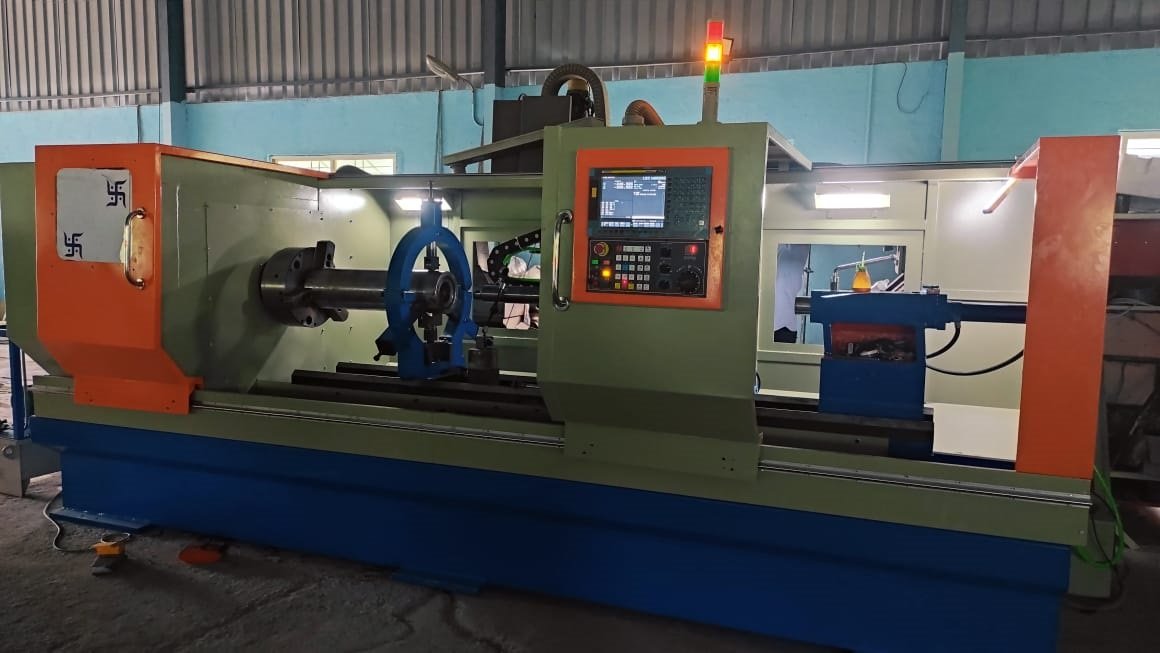

CNC Boring Machine

Request Callback
CNC Boring Machine
Get Best Quote
Specification Max Z Axis Travel : 900 mm
Specification Centre Height : 450 mm
Specification Swing Over Bed : 600 mm
Specification Controller : Fanuc / Delta / Mach3
Machine Specifications
CNC Controller Fanuc / Delta / PC Based Mach3
Bed Type Flat Bed
Max Z Axis Travel 900 mm
Centre Height 450 mm
Swing Over Bed 600 mm
Max Turning Diameter 400 mm
Main Spindle Bore 90 mm
Main Spindle Carriage Type A2-8
Speed Range 100-1200 RPM
AC Servo Spindle with Drive 15 KW
Coolant Pump Motor 1 HP
Coolant System Centralized
AC Servo Drive & Motor 2 KW
Ball Screw 50x10 & 32x10 (Hiwin C1 Class)
Roller LM Guides (X Axis) Square 32 mm
Transformer 5 KVA
Repeatability 0.020 µm
Spindle Runout 0.010 µm
Machine Length Taper in 600 mm 0.02 µm
Rapid Travel 10000 mm/min
Boring Tool Post Holder Capacity 100 mm
ATC Turret 4 Station
Full Covered Yes
Hydraulic Chuck Dia 400 mm (3 Jaw)
Lubrication Centralized
Grinding Attachment Included
Boring Bar Included
Yes! I am Interested

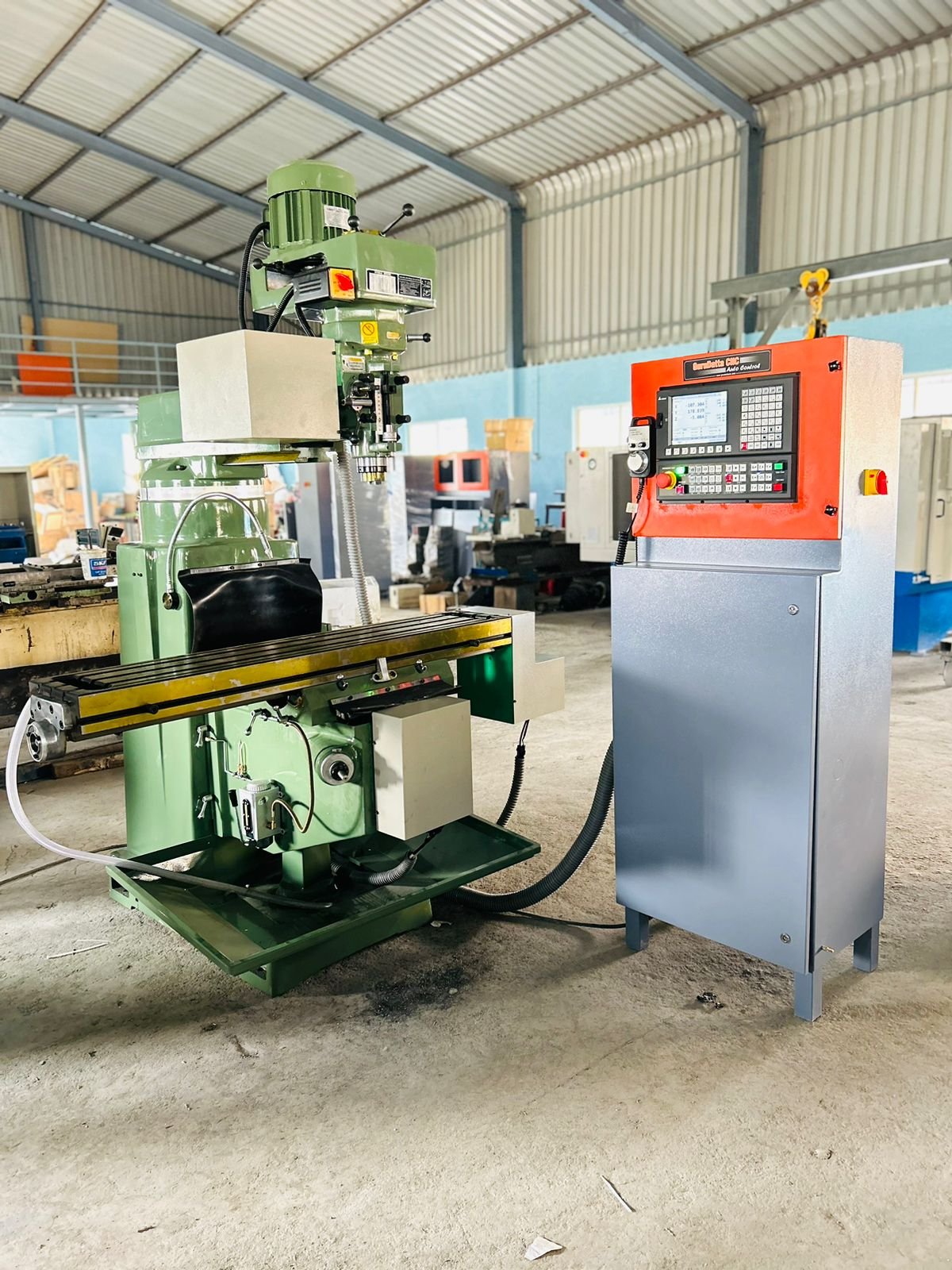

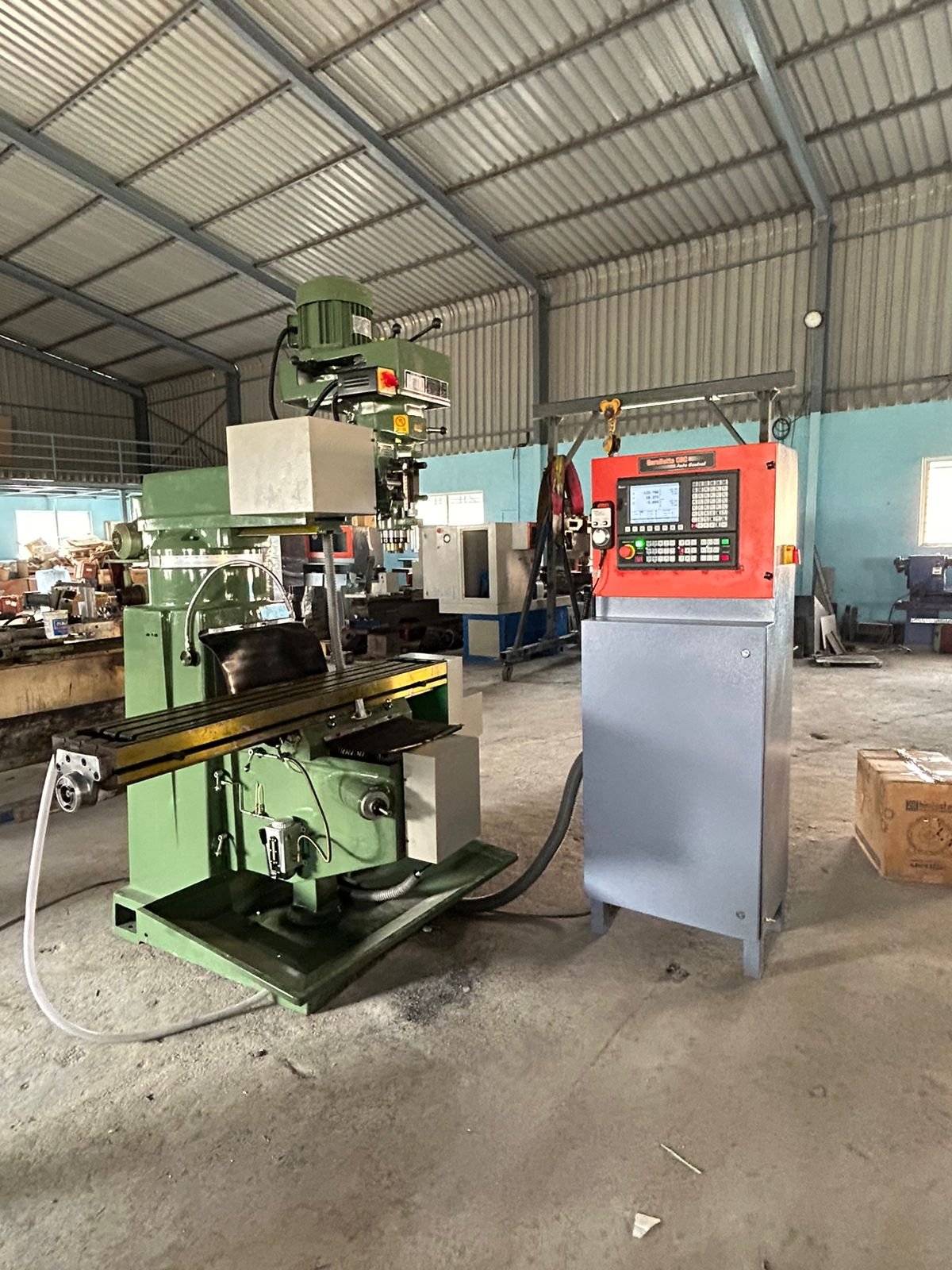

CNC Retrofit Kit for Universal Milling Machine

Request Callback
CNC Retrofit Kit for Universal Milling Machine
Get Best Quote
Specification Table Size : 1000 X 250 mm
Specification Table Travel X Axis : 500 mm
Specification Table Travel Y Axis : 250 mm
Specification Table Travel Z Axis : 400 mm
Machine Specifications
CNC Controller Delta
Table Size 1000 X 250 mm
Table Travel X Axis 500 mm
Table Travel Y Axis 250 mm
Table Travel Z Axis 400 mm
Spindle Speed 50 to 800 RPM
Weight 2300 kg
Arbor Size 1” (25.4 mm)
Ball Screw Size (X, Y & Z Axis) Ø32
AC Servo Drive & Motor X & Y Axis 2.4 Nm
AC Servo Drive & Motor Z Axis 4.7 Nm
Rotary Axis (4th Axis) 2.4 Nm
Lubrication System Motorized
Transformer Included
Coolant Pump Included
MPG Included
Yes! I am Interested

CNC Turning with Drilling Machine

Request Callback
CNC Turning with Drilling Machine
Get Best Quote
Specification Distance Between Centre : 900 mm
Specification Centre Height : 300 mm
Specification Max Turning Diameter : Dia 250 mm
Specification Controller : Delta / Fanuc / Siemens / Mach3
Machine Specifications
CNC Controller Delta / Fanuc / Siemens / PC Base Mach3
Axis Drive & Motor AC Servo
Distance Between Centre 900 mm
Centre Height 300 mm
Swing Over Carriage 150 mm
Max Turning Diameter Dia 250 mm
Main Spindle Bore 125 mm
Main Spindle Nose Type A2-8
Main Spindle Morse Taper MT-3
Speed Range 100-800 RPM
Tail Stock Barrel Dia 52 mm
Tail Stock Barrel Travel 140 mm
Tail Stock Barrel Taper MT3
Main Motor Power 5 HP
Pump Motor Power 0.5 HP
Transformer 2 KVA
Repeatability +/-0.025 mm
Rapid Travel 6000 mm/min
Hydraulic Chuck Dia 250 mm
Hydraulic Tailstock Included
Auto Tool Changer 4 Tool
With Live Tool Drilling Included
Yes! I am Interested

Twin Spindle Facing Boring Machine

Request Callback
Twin Spindle Facing Boring Machine
Get Best Quote
Specification Pipe Length Capacity : 2000 mm
Specification Spindle Heads : 2 Nos.
Specification Machine Bed Length : 14 Feet
Specification Controller : Delta / Fanuc / Siemens / Mach3
Machine Specifications
CNC Controller Delta / Fanuc / Siemens / PC Base Mach3
Axis Motor & Drive AC Servo
Machine Bed Length 14 Feet
Pipe Length Capacity 2000 mm
Spindle Head 2 Nos.
Sliding Head 1 No.
Fix Head 1 No.
LM Guide Ways Included
Job Clamping Hydraulic 3 Jaw True Chuck – 2 Nos.
Ball Screws X Axis 25x10, Z Axis 40x10
Spindle Motor 3 HP 1440 RPM (2 Nos.)
VFD 3 HP
X Axis Travel 200 mm (per Spindle)
Z Axis Travel 1500 mm
PLC & HMI Included
Machine Base Casting Structure
Door Cover MS Fabricated
Timing Belts, Pulleys, Bearings, Limit Switches Included
Coolant System Included
Auto Lubrication System Included
Job Stopper Included
Yes! I am Interested

VTL Machine - Model: VTL 1 M

Request Callback
VTL Machine - Model: VTL 1 M
Get Best Quote
Specification Table Diameter : 1000 mm
Specification Maximum Turning Diameter : 1100 mm
Specification Maximum Working Height : 440 mm
Specification Controller : Delta CNC
Machine Specifications
Machine Type Single Column Vertical Turning Lathe (VTL)
Table Diameter 1000 mm
Maximum Turning Diameter 1100 mm
Maximum Working Height under Cross Rail 440 mm
Vertical Travel of Ram Head 270 mm
Table Speeds 3 to 55 RPM
CNC Controller Delta
Axis Motors & Servo Drives Included
Electronic Panel Board Included
All Necessary Cables & Sensors Included
Ball Screws Included
Timing Pulleys & Belts As per machine
Fitting Plates As per machine
Angular Contact & Roller Bearings Included
Lubrication System Manual
Transformer Included
Special Feature Single Ram Head on Cross Rail + Variable Speed Drive
Yes! I am Interested

CNC Turn Mill Machine

Request Callback
CNC Turn Mill Machine
Get Best Quote
Specification Machine Length : 18 Feet
Specification Center Height : 12 Inch
Specification Spindle Bore : 80 mm
Specification Controller : Delta / Fanuc / Siemens / Mach3
Machine Specifications
CNC Controller Delta / Fanuc / Siemens / PC Base Mach3
Machine Length 18 Feet
Center Height 12 Inch
Spindle Bore 80 mm
Bed Width 15 Inch
Servo Spindle Motor 5.5 KW
Heavy Tailstock Included
AC Servo Motors & Servo Drives Included
Electronic Panel Board Included
All Necessary Cables & Sensors Included
Ball Screws 50x5 (Z Axis), 25x5 (X Axis)
Timing Pulleys & Belts As per machine
Fitting Plates As per machine
Angular Contact & Roller Bearings Included
Lubrication System Manual
Transformer Included
Horizontal Milling Head BT40
4 Station Square Turret Included
Yes! I am Interested

CNC Worm Machine

Request Callback
CNC Worm Machine
Get Best Quote
Specification Distance Between Centre : 300 mm
Specification Centre Height : 250 mm
Specification Max Turning Diameter : 250 mm
Specification Controller : Delta / Fanuc / Siemens / Mach3
Machine Specifications
CNC Controller Delta / Fanuc / Siemens / PC Base Mach3
Axis Drive & Motor AC Servo
Distance Between Centre 300 mm
Centre Height 250 mm
Swing Over Carriage 150 mm
Max Turning Diameter Dia 250 mm
Main Spindle Bore 60 mm
Main Spindle Nose Type A2-8
Main Spindle Morse Taper MT-3
Speed Range 100-1200 RPM
Tail Stock Barrel Dia 52 mm
Tail Stock Barrel Travel 140 mm
Tail Stock Barrel Taper MT3
Main Motor Power 5 HP
Pump Motor Power 0.5 HP
Transformer 2 KVA
Repeatability +/-0.025 mm
Rapid Travel 6000 mm/min
Hydraulic Chuck Dia 250 mm
Hydraulic Tailstock Included
Auto Tool Changer 4 Tool
With Live Tool Drilling Included
Yes! I am Interested

SPM Machine (Biscuit Die Making)

Request Callback
SPM Machine (Biscuit Die Making)
Get Best Quote
Specification ABC : 1800 mm
Specification Center Height : 300 mm (12”)
Specification Total Bed Length : 16 ft
Specification Controller : Delta
Machine Specifications
Spindle Rotary Axis 360°
Tailstock Dia 80 mm
Tailstock Barrel Travel 150 mm
3 Jaw True Chuck 300 mm
VMC Spindle Capacity 5.5 KW
Spindle Type BT30
Spindle RPM 500 to 16000
Machine Bed Casting
LM Guide Ways 25 mm (All Axis)
Ball Screw Z Axis Dia 40 mm
Ball Screw X & Y Axis Dia 25 mm
CNC Controller Delta
AC Servo Drive & Motor Z Axis & Rotary 4.7 Nm Delta
AC Servo Drive & Motor X & Y Axis 2.4 Nm Delta
Lubrication System Motorized
Transformer Included
Canopy Included
Tool Clamp Pneumatic
Onsite Training Included
Yes! I am Interested

CNC Retrofit Kit for Conventional Lathe Machine (2 Axis)

Request Callback
CNC Retrofit Kit for Conventional Lathe Machine (2 Axis)
Get Best Quote
Specification Axis : 2 Axis
Specification Controller : Delta / Fanuc / Siemens / Mach3
Specification Machine Type : Conventional Lathe
Specification Turret : Included
Machine Specifications
CNC Controller Delta / Fanuc / Siemens / PC Base Mach3
AC Servo Motors & Servo Drives For 2 Axis
Electronic Panel Board Included
All Necessary Cables & Sensors Included
Ball Screws Included
Timing Pulleys & Belts As per machine
Fitting Plates As per machine
Angular Contact & Roller Bearings Included
Miscellaneous Fasteners Included
Lubrication System Manual
Transformer Included
Turret Included
Encoder for Threading Included
Yes! I am Interested

CNC Retrofit Kit for M1TR Milling Machine

Request Callback
CNC Retrofit Kit for M1TR Milling Machine
Get Best Quote
Specification Controller : PC Base Mach3 / Delta / Siemens / Fanuc
Specification Axis : 3 Axis
Specification Servo Motors : AC Servo
Specification Lubrication : Included
Machine Specifications
CNC Controller PC Base Mach3 / Delta / Siemens / Fanuc
Axis Motors & Servo Drives AC Servo
Electronic Panel Board Included
Machine Controller Software Included
All Necessary Cables & Sensors Included
Timing Pulleys & Belts Included
Fitting Plates As per machine
Angular Contact & Roller Bearings Included
Miscellaneous Fasteners Included
Lubrication System Included
Transformer Included
Yes! I am Interested

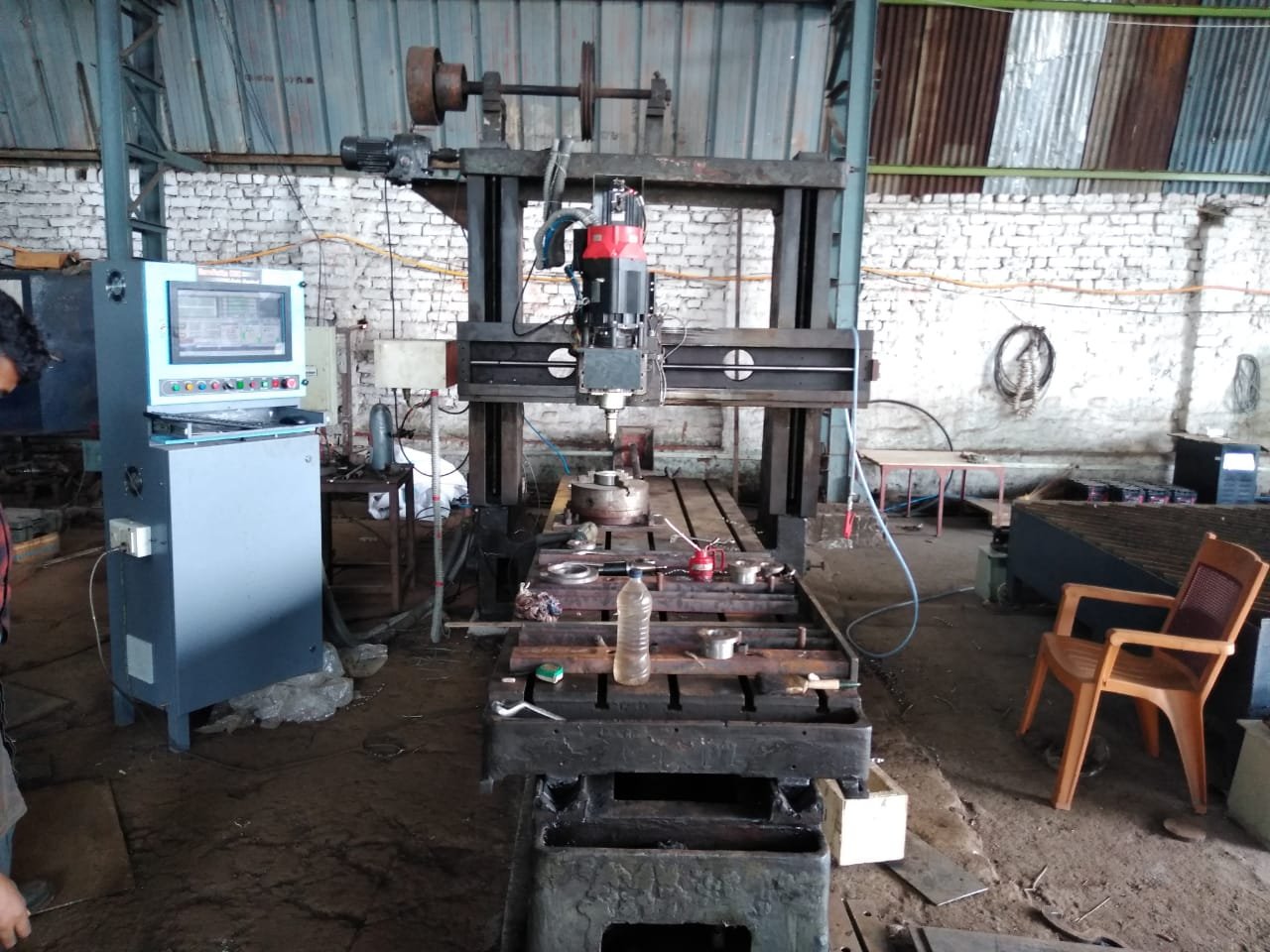

CNC Retrofit Kit for Plano Milling Machine

Request Callback
CNC Retrofit Kit for Plano Milling Machine
Get Best Quote
Specification Axis : 4 Axis + 1 Spindle
Specification Controller : Delta CNC Controller
Specification Servo Motors : 9 Nm (X, Y, Z Axis)
Specification Gear Box : 1:20 for Z Axis
Machine Specifications
CNC Controller Delta (4 Axis + 1 Spindle)
AC Servo Motors & Servo Drives 9 Nm for X, Y & Z Axis
All Necessary Cables & Sensors Included
Ball Screws For 3 Axis
Timing Pulleys & Belts As per machine requirement
Fitting Plates As per machine
Miscellaneous Fasteners Included
Transformer Included
1 20 Gear Box for Z Axis : Included
Suitable for Plano Milling Machine
Yes! I am Interested

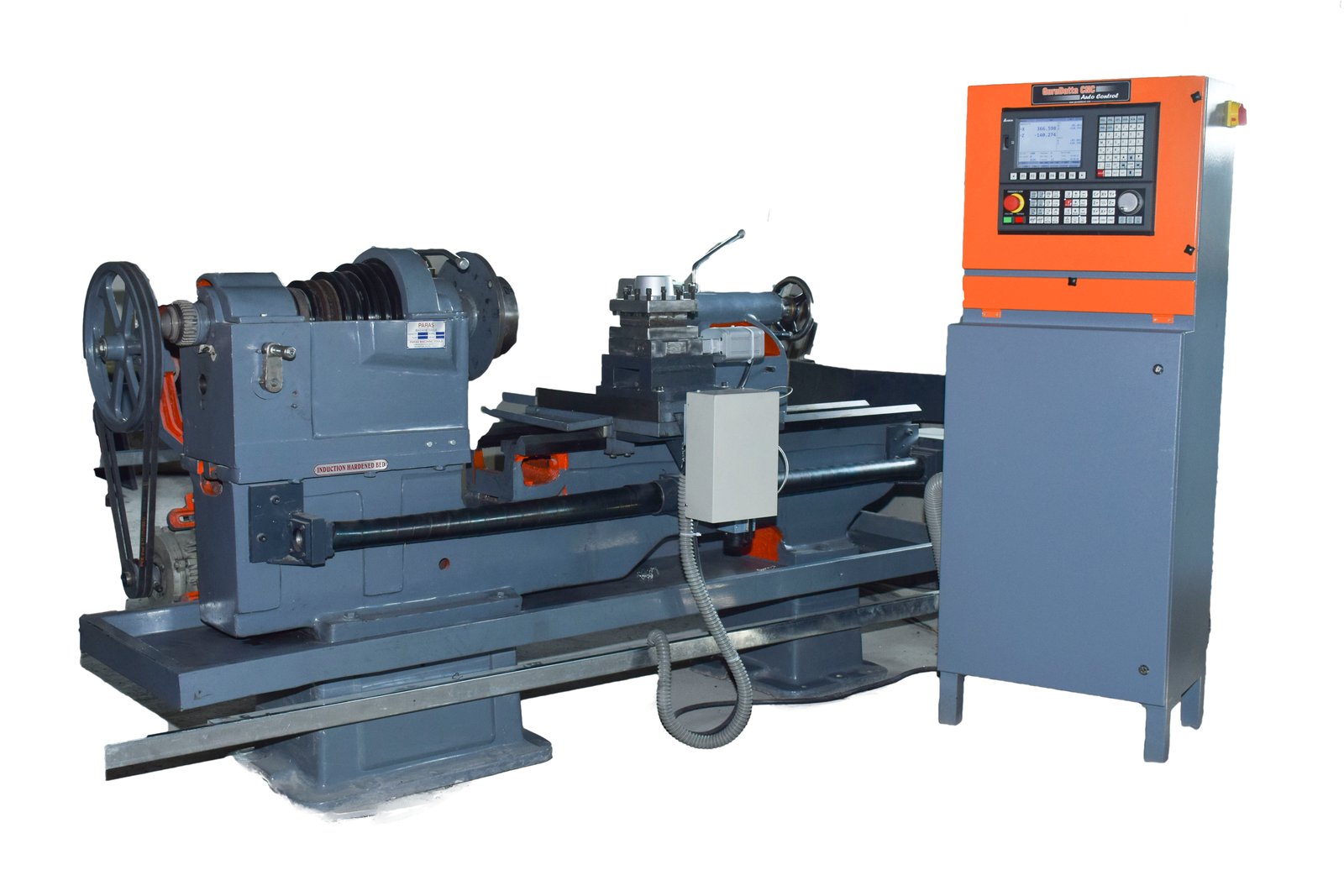

CNC Retrofit Kit with Lathe Machine

Request Callback
CNC Retrofit Kit with Lathe Machine
Get Best Quote
Specification Machine Type : Rajkot Make Lathe (3.5 Feet and above)
Specification Axis : 2 Axis Retrofit
Specification Controller : Delta / Fanuc / Siemens / Mach3
Specification Turret : Included
Machine Specifications
Lathe Machine (Rajkot Make) 3.5 Feet and more
CNC Controller Delta / Fanuc / Siemens / PC Base Mach3
AC Servo Motors & Servo Drives Included
Electronic Panel Board Included
All Necessary Cables & Sensors Included
Ball Screws Included
Timing Pulleys & Belts As per machine
Fitting Plates As per machine
Angular Contact & Roller Bearings Included
Miscellaneous Fasteners Included
Lubrication System Manual
Transformer Included
Turret Included
Encoder for Threading Included
Machine Half Cover Included
Yes! I am Interested

CNC Retrofit Kit with M1TR Machine

Request Callback
CNC Retrofit Kit with M1TR Machine
Get Best Quote
Specification Controller : Delta / Fanuc / Siemens / Mach3
Specification X Travel : 600 mm
Specification Y Travel : 400 mm
Specification Z Travel : 120 mm
Machine Specifications
CNC Controller PC Base Mach3 / Delta / Siemens / Fanuc
Machine Type M1TR Milling Machine Retrofit
X Travel 600 mm
Y Travel 400 mm
Z Travel 120 mm
AC Servo Motors & Servo Drives Included
Electronic Panel Board Included
Controller Software Included
All Necessary Cables & Sensors Included
Timing Pulleys & Belts Included
Fitting Plates As per machine
Angular Contact & Roller Bearings Included
Lubrication System Manual
Transformer Included
Vertical Turret Milling Machine With Standard Accessories
C-Type Boring Head & Shank Included
Yes! I am Interested

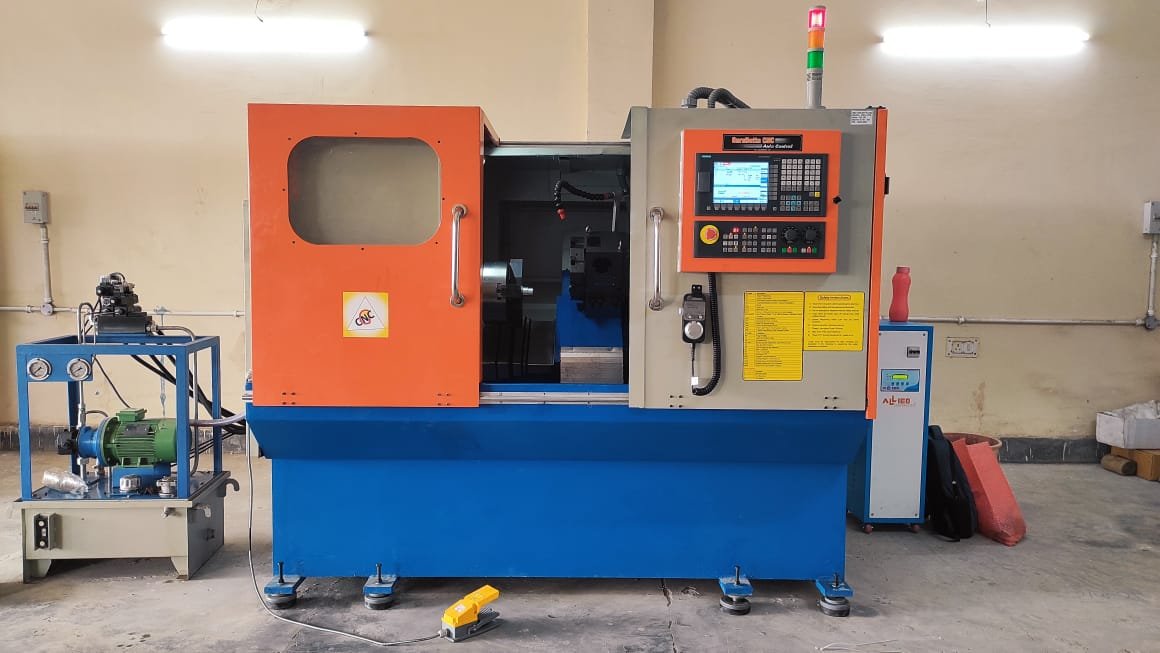

Slant Bed CNC Machine Model SL

Request Callback
Slant Bed CNC Machine Model SL
Get Best Quote
Specification Distance Between Center : 300 mm
Specification Centre Height : 100 mm
Specification Max Turning Diameter : 75 mm
Specification Controller : Delta / Fanuc / Siemens / Mach3
Machine Specifications
CNC Controller Delta / Fanuc / Siemens / PC Base Mach3
Axis & Drive Motor AC Servo
Bed Type Slant Bed
Distance Between Center 300 mm
Centre Height 100 mm
Swing Over Carriage 100 mm
Max Turning Diameter 75 mm
Main Spindle Bore 38 mm
Main Spindle Nose Threading Type
Speed Range 100-2800 RPM
Main Motor Power 5 HP
Transformer 3 KVA
Repeatability +/-0.020 mm
Rapid Travel 10000 mm/min
Hydraulic Chuck 165 mm
Auto Tool Changer 4 Station / 8 Station
Yes! I am Interested

Slant Bed CNC Machine Model SXL

Request Callback
Slant Bed CNC Machine Model SXL
Get Best Quote
Specification Distance Between Center : 600 mm
Specification Centre Height : 200 mm
Specification Max Turning Diameter : 150 mm
Specification Controller : Delta / Fanuc / Siemens / Mach3
Machine Specifications
CNC Controller Delta / Fanuc / Siemens / PC Base Mach3
Bed Type Slant Bed SXL Model
Distance Between Center 600 mm
Axis Motor & Drive AC Servo
Centre Height 200 mm
Swing Over Carriage 200 mm
Max Turning Diameter 150 mm
Main Spindle Bore 52 mm
Main Spindle Nose Threading Type
Speed Range 100-2800 RPM
Main Motor Power 7.5 HP
Pump Motor Power 0.5 HP
Transformer 3 KVA
Repeatability +/-0.025 mm
Rapid Travel 10000 mm/min
ATC 8 Tool
Hydraulic Chuck 200 / 250 mm
Yes! I am Interested

CNC Milling Machine

Request Callback
CNC Milling Machine
Get Best Quote
Specification Table Travel X Axis : 450 mm
Specification Table Travel Y Axis : 300 mm
Specification Table Travel Z Axis : 450 mm
Specification Controller : Delta / Fanuc / Siemens / Mach3
Machine Specifications
Use Production
CNC Controller Delta / Fanuc / Siemens / PC Base Mach3
Axis Drive & Motor AC Servo
Table Travel X Axis 450 mm
Table Travel Y Axis 300 mm
Table Travel Z Axis 450 mm
Spindle Speed 100 to 4000 RPM
Spindle Type BT30
Spindle Motor 3 HP
Ball Screw (X, Y & Z Axis) Dia 25 mm
Lubrication System Motorized
Transformer 3 KVA
ATC 8 Tool
Tool Clamp Pneumatic
Coolant Pump 0.5 HP
MPG Included
Yes! I am Interested

Vertical Machining Centre

Request Callback
Vertical Machining Centre
Get Best Quote
Specification Table Travel X Axis : 600 mm
Specification Table Travel Y Axis : 400 mm
Specification Table Travel Z Axis : 450 mm
Specification Controller : Delta / Fanuc / Siemens / Mach3
Machine Specifications
CNC Controller Delta / Fanuc / Siemens / PC Base Mach3
Axis Drive & Motor AC Servo
Table Travel X Axis 600 mm
Table Travel Y Axis 400 mm
Table Travel Z Axis 450 mm
Spindle Speed 100 to 4000 RPM
Spindle Type BT40
Spindle Motor 5.5 KW AC Servo
Ball Screw (X,Y,Z) Dia 32 & 40 mm
Lubrication System Motorized
Transformer 5 KVA
ATC 8 Tool
Coolant Pump 0.5 HP
Weight 4500 kg
MPG Included
Tool Clamp Pneumatic
Yes! I am Interested

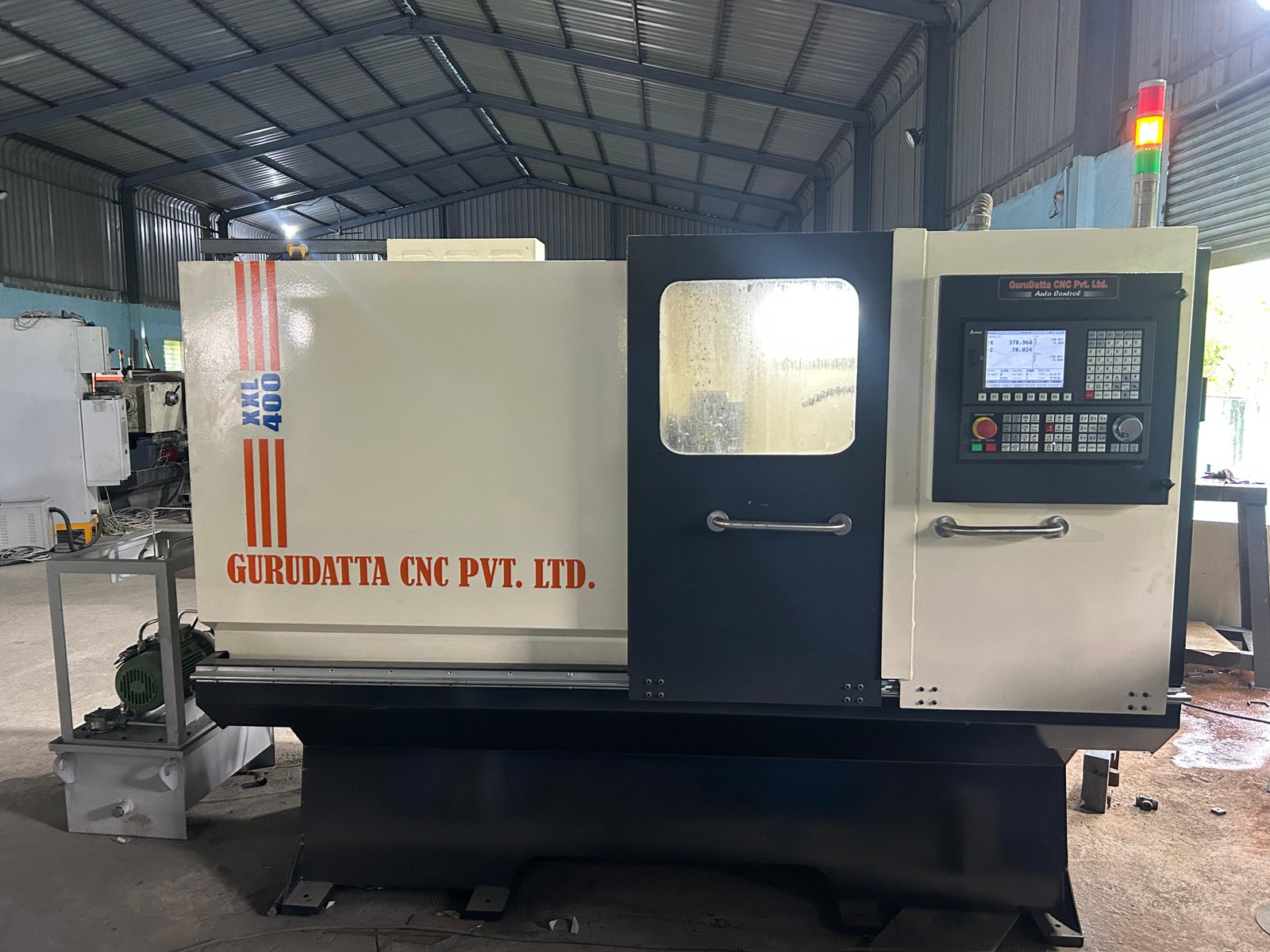

Customized CNC Lathe Machine Turning Dia 400 mm

Request Callback
Customized CNC Lathe Machine Turning Dia 400 mm
Get Best Quote
Specification Distance Between Center : 400 mm
Specification Centre Height : 300 mm
Specification Max Turning Diameter : 450 mm
Specification Controller : Delta / Fanuc / Siemens / Mach3
Machine Specifications
CNC Controller Delta / Fanuc / Siemens / PC Base Mach3
Axis Motor & Drive AC Servo
Distance Between Center 400 mm
Centre Height 300 mm
Swing Over Carriage 350 mm
Max Turning Diameter 450 mm
Main Spindle Bore 52 mm
Main Spindle Nose MT3 Type
Speed Range 100 – 1500 RPM
Main Motor Power 7.5 KW
Pump Motor Power 0.5 HP
Transformer 3 KVA
Repeatability +/-0.025 mm
Rapid Travel 6000 mm/min
Horizontal Tool Changer 4 Station
Hydraulic Chuck 315 mm
Machine Weight 2000/2100 KG
Yes! I am Interested

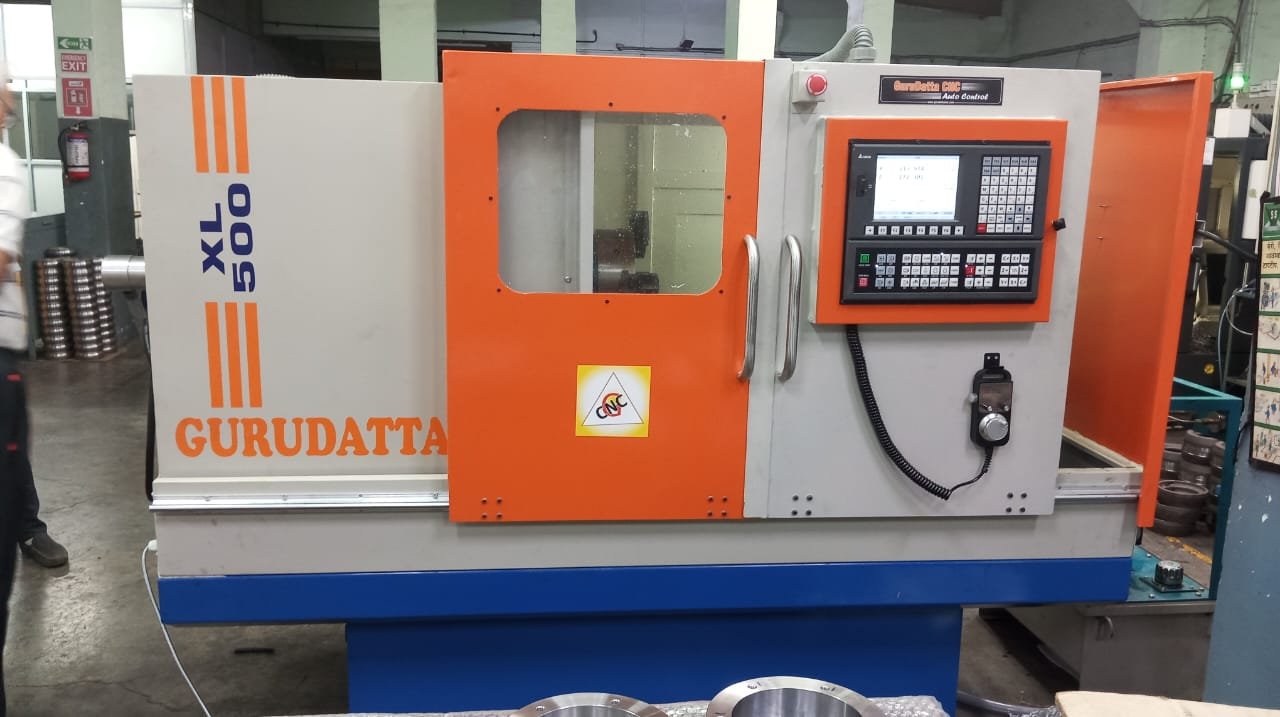

CNC Flat Bed XL Model

Request Callback
CNC Flat Bed XL Model
Get Best Quote
Specification Centre Height : 300 mm
Specification Swing Over Carriage : 200 mm
Specification Max Turning Diameter : 300 mm
Specification Controller : Delta / Fanuc / Siemens / Mach3
Machine Specifications
CNC Controller Delta / Fanuc / Siemens / PC Base Mach3
Axis Motor & Drive AC Servo
Centre Height 300 mm
Swing Over Carriage 200 mm
Max Turning Diameter 300 mm
Main Spindle Bore 52 mm
Main Spindle Nose Threading Type
Main Spindle Morse Taper MT3
Speed Range 100-1500 RPM
Tail Stock Barrel Diameter 52 mm
Tail Stock Barrel Travel 140 mm
Tail Stock Barrel Taper MT3
Main Motor Power 7.5 HP
Pump Motor Power 0.5 HP
Transformer 3 KVA
Repeatability +/-0.025 mm
Rapid Travel 6000 mm/min
Horizontal Tool Changer 4 Station
Hydraulic Chuck 200 mm
Yes! I am Interested

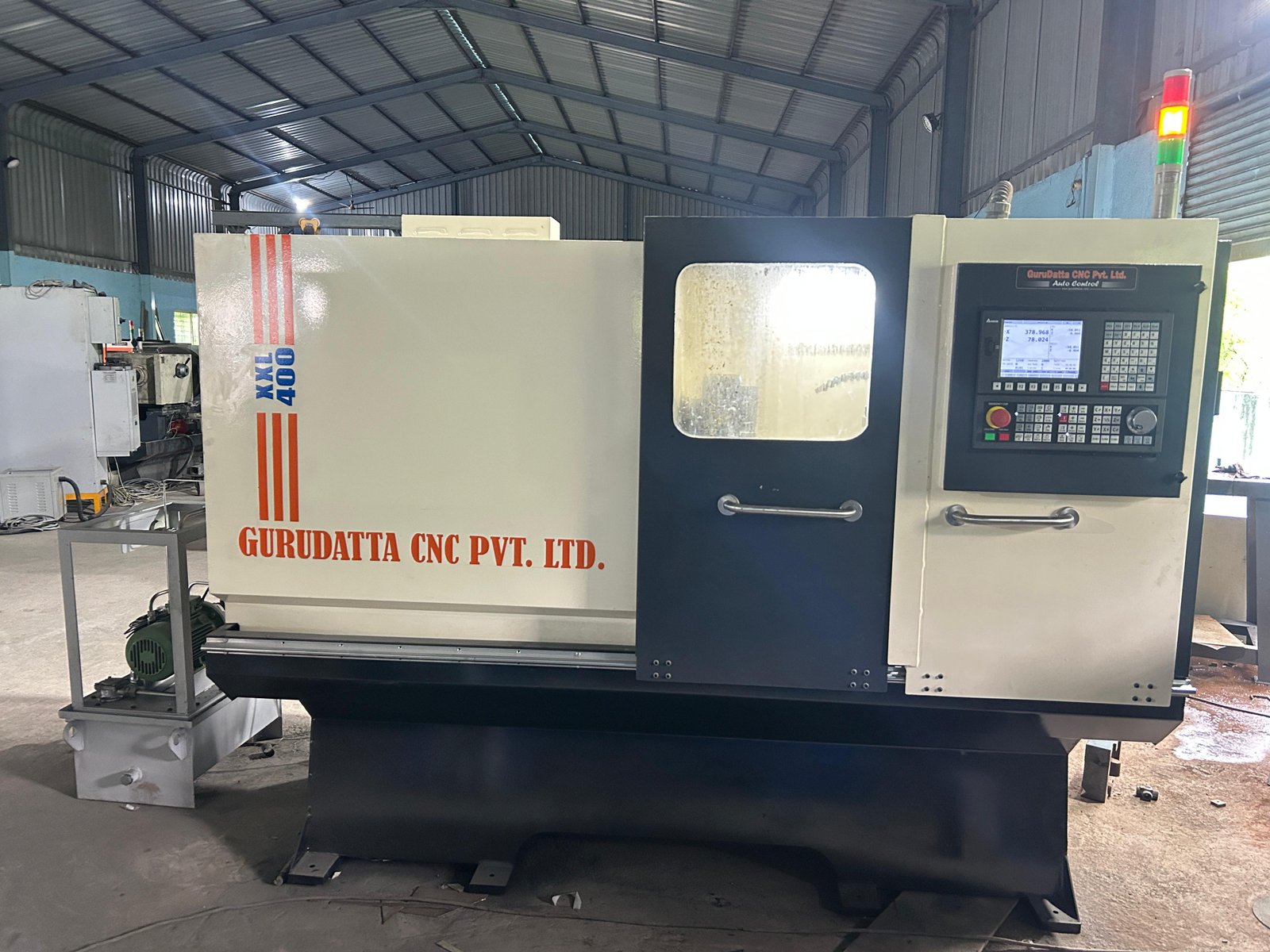

Flat Bed CNC Lathe Machine Model XXL

Request Callback
Flat Bed CNC Lathe Machine Model XXL
Get Best Quote
Specification Distance Between Center : 900 mm
Specification Centre Height : 300 mm
Specification Max Turning Diameter : 300 mm
Specification Controller : Delta / Fanuc / Siemens / Mach3
Machine Specifications
CNC Controller Delta / Fanuc / Siemens / PC Based Mach3
Axis Motor & Drive AC Servo
Distance Between Center 900 mm
Centre Height 300 mm
Swing Over Carriage 200 mm
Max Turning Diameter 300 mm
Main Spindle Bore 80 mm
Main Spindle Nose Threading Type
Main Spindle Morse Taper MT-3
Speed Range 100 – 1500 RPM
Tail Stock Barrel Diameter 52 mm
Tail Stock Barrel Travel 140 mm
Tail Stock Barrel Taper MT3
Main Motor Power 7.5 HP
Pump Motor Power 0.5 HP
Transformer 3 KVA
Repeatability +/-0.025 mm
Rapid Travel 6000 mm/min
Horizontal Tool Changer 4 Station
Yes! I am Interested

CNC Lathe Machine Model XXXL

Request Callback
CNC Lathe Machine Model XXXL
Get Best Quote
Specification ABC Turning Length : 2000 mm (2 Meter)
Specification Swing Over Bed : 420 mm
Specification Main Spindle Bore : 90 mm
Specification Controller : Delta / Fanuc / Siemens / Mach3
Machine Specifications
CNC Controller Delta / Fanuc / Siemens / PC Based Mach3
Axis Motor & Drive AC Servo
ABC Turning Length 2000 mm (2 Meter)
Machine Length 12 Feet
Centre Height 12 Inch
Job Swing on Carriage 320 mm
Swing Over Bed 420 mm
Main Spindle Bore 90 mm
Main Spindle Nose A2-8 Type
Speed Range 100-1500 RPM
AC Servo Spindle Motor Power 9 KW
Pump Motor Power 0.5 HP
Coolant System 0.5 HP
Ball Screw Hiwin
Transformer 5 KVA
Repeatability +/-0.025 mm
Rapid Travel 6000 mm/min
ATC Turret 8 Tool (ATD Taiwan Make)
Lubrication Centralized
Steady Rest Yes
Full Covered Yes
Hydraulic 4 Jaw True Chuck 300 mm
Yes! I am Interested

Flat Bed CNC Machine Model L

Request Callback
Flat Bed CNC Machine Model L
Get Best Quote
Specification Swing Over Bed : 250 mm
Specification Max Turning Length : 150 mm
Specification Spindle Bore : 38 mm
Specification Controller : Delta / Fanuc / Siemens / Mach3
Machine Specifications
CNC Controller Delta / Fanuc / Siemens / Mach3
Axis Motor & Drive AC Servo
Spindle Motor 2 HP with VFD
Max Depth of Cut 2 mm
Spindle Motor Speed 100 to 3000 RPM
Lubrication System Automatic (Motorized)
Swing Over Bed 250 mm
Swing Over Carriage 100 mm
Centre Height 200 mm
Transformer 2 KVA
Max Machining Diameter 60 mm
Max Turning Length 150 mm
Max Longitudinal Travel 300 mm
Spindle Inside Taper MT-3
Spindle Type Regular
Spindle Bore Diameter 38 mm
Standard Cutting Tool Size 20 X 20
Input System Metric / Inch
Chuck Size Dia 110 mm
Rapid Feed Rate Axis 1000 mm/Min
Max Rapid Feed 4000 mm/Min
Accuracy 0.005µ
Ball Screw HIWIN
Horizontal Tool Changer 4 Station
Yes! I am Interested
